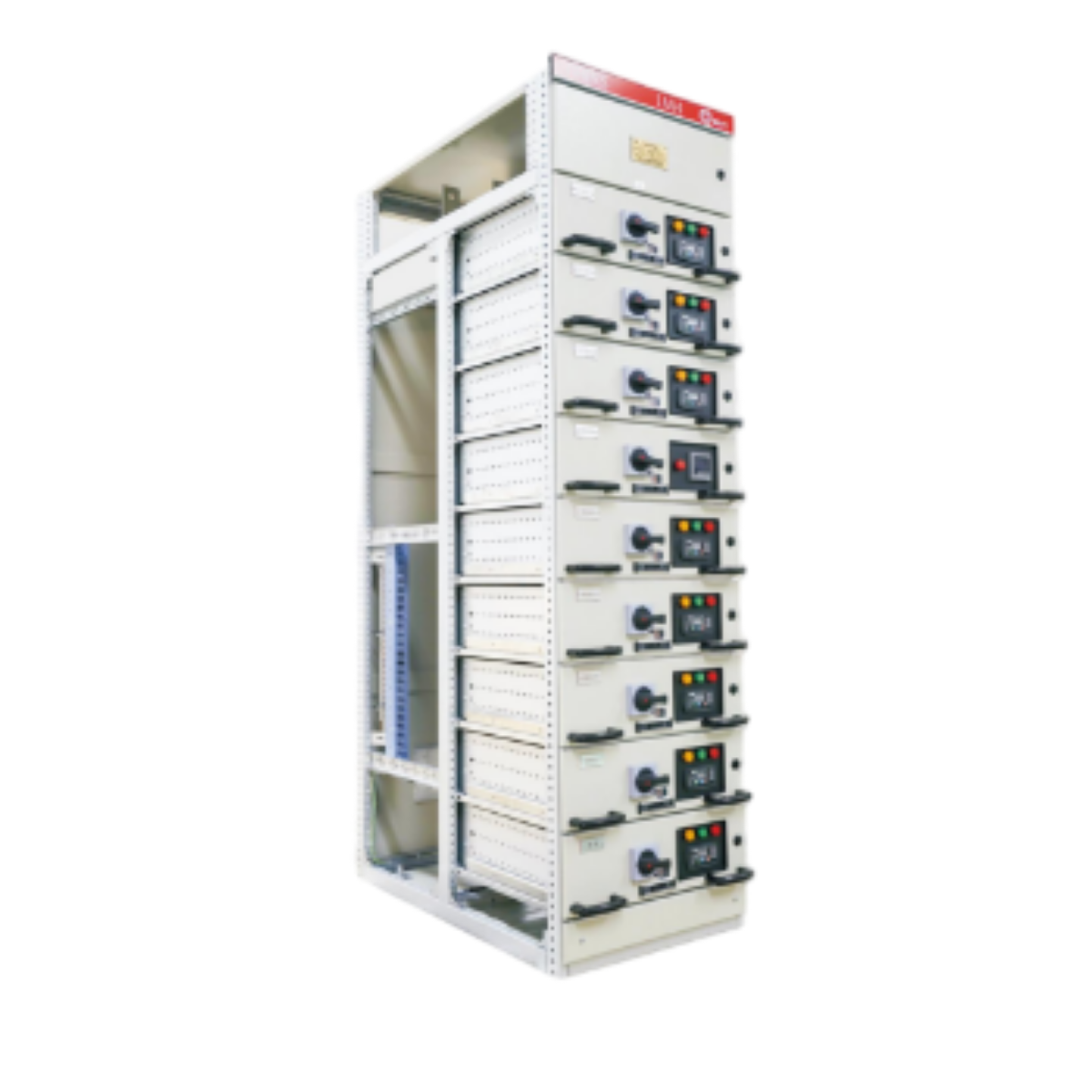

The JYGCSK low-voltage withdrawable AC switch comprises two main components: the Power Distribution Center (PC) cabinet and the Motor Control Center (MCC).

Designed for power distribution systems in power plants, substations, industrial facilities (including petroleum, chemical, metallurgical, and textile plants), and high-rise buildings, this equipment supports three-phase AC power supply systems operating at 50Hz with rated voltages up to 380V and rated currents under 6300A.

📩 Contact Our Team

Warranty coverage: Standard warranty applies to manufacturing defects.

Certification & compliance: Designed to meet applicable international standards.

  • All products undergo strict quality control and performance testing before shipment.
  • Designed for stable operation in demanding commercial and industrial environments.
  • Professional technical guidance available before and after purchase.
  • Support includes system selection, configuration advice, and usage guidance.
  • Dedicated support team for project coordination and long-term cooperation.
  • We focus on reliable solutions, not just one-time product delivery.

0

Countries Served

Operations across Kenya, Nigeria, Ghana, DR Congo, Zambia, Tanzania, Ethiopia, and Somalia.

0

Hour Power Delivery

We deliver stable electricity for homes, farms, eliminating downtime and production loss.

0

Percent Cost Reduction

Our solar-storage systems replace diesel generators, cutting long-term fuel expenses by up to 70%.

Product Overview

Project Data
Rated insulation voltage AC 800V (AC 1000V)
Maximum working voltage AC 380V (AC 660V)
Rated frequency 50HZ
Horizontal busbar rated current 6300-800A
Vertical busbar rated current 1800A
Peak withstand current of horizontal busbar 83KA, 105KA, 178KA
Horizontal busbar short-time withstand current 30KA, 50KA, 80KA, 100KA
Peak withstand current of vertical busbar 83KA, 105KA
Vertical busbar short-time withstand current 30KA, 50KA
Protection level IP30
External dimensions (W*D*H) 600(800, 1000)*800(1000)*2200
